Product Summary

The AQV253A is a High sensitivity low on-resistance. Application areas of the AQV253A include High-speed inspection machines, Telephone equipment, Data communication equipment.

Parametrics

AQV253A absolute maximum ratings: (1)LED operate current: 0.9 mA; (2)LED turn off current: 0.4 mA; (3)LED dropout voltage: 1.25 V; (4)Off state leakage current: 1μA.

Features

AQV253A features: (1)Highly sensitive and low onresistance; (2)Controls various types of loads such as relays, motors, lamps and isolenoids; (3)Optical coupling for extremely high isolation; (4)Low-level off state leakage current; (5)Eliminates the need for a power supply to drive the power MOSFET.

Diagrams

AQV253A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AQV253A
AQV253A
Panasonic Electric Works
Solid State Relays 250v 200mA DIP Form A Norm-Open
Data Sheet
0-1: $3.37
1-25: $3.09
25-50: $2.75
50-100: $2.33

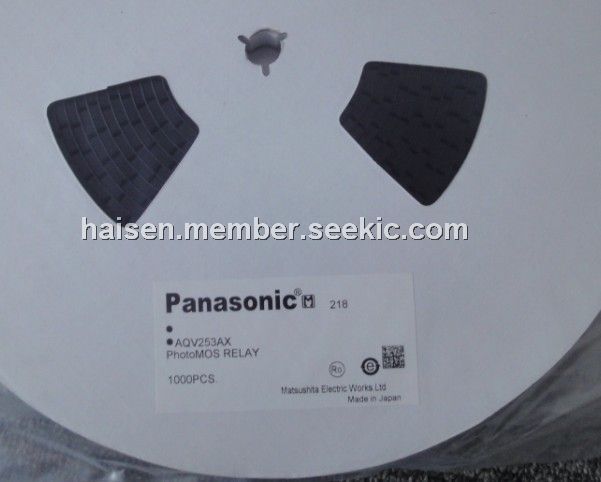

AQV253AX
AQV253AX
Panasonic Electric Works
Solid State Relays 250v 200mA DIP Form A Norm-Open
Data Sheet
0-1000: $2.28
1000-3000: $2.20
AQV253AZ
AQV253AZ
Panasonic Electric Works
Solid State Relays RELAY OPTO 250V 200MA 6-SMD
Data Sheet
0-1000: $2.07
1000-3000: $2.00
