Product Summary

The MAX485CPA is designed as one kind of ±15kV ESD-protected, slew-rate-limited, low-power, RS-485/RS-422 transceiver device. The MAX485CPA can be used in Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks applications.

Parametrics

MAX485CPA absolute maximum ratings: (1)Supply Voltage (VCC): 12 V;(2)Control Input Voltage: -0.5V to (VCC+0.5V);(3)Driver Input Voltage: -0.5V to (VCC+0.5V);(4)Driver Output Voltage: -8V to +12.5V;(5)Receiver Input Voltage: -8V to +12.5V;(6)Receiver Output Voltage: -0.5V to (VCC+0.5V);(7)Continuous Power Dissipation: 727 mW;(8)Storage Temperature Range: -65℃ to +160℃;(9)Lead Temperature (soldering, 10sec): +300℃;(10)Operating Temperature Range: 0℃ to +70℃.

Features

MAX485CPA features: (1)Miniature Size; (2)High Output Power; (3)Ultra Broadband; (4)Flat Gain Characteristic; (5)MMIC; (6)Monitor Output; (7)Gain and Offset Control.

Diagrams

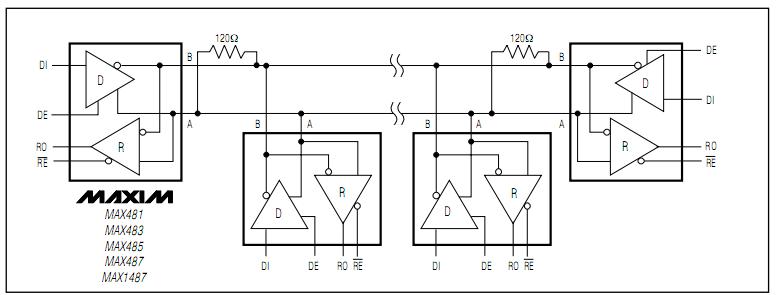

MAX485CPA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX485CPA
MAX485CPA

Maxim Integrated Products

RS-422/RS-485 Interface IC

Data Sheet

Negotiable
MAX485CPA+
MAX485CPA+

Maxim Integrated Products

RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver

Data Sheet

0-1: $1.91
1-25: $1.28
25-50: $0.93
50-100: $0.92
