Product Summary

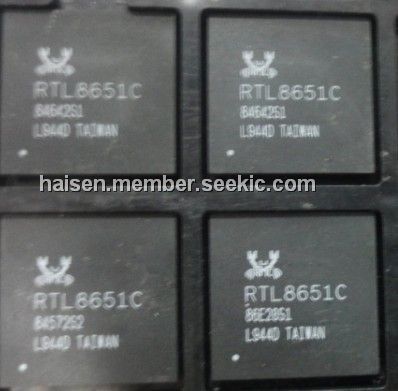

The RTL8651C is an NE2000 compatible Ethernet Controller for PCI interface. Taking the benefit of PCI is high throughput rate, the RTL8651C controller offers a 32-bit data path to highly improve the data transfer rate compared with traditional Ethernet card on ISA, EISA and MCA bus.
Parametrics
RTL8651C absolute maximum ratings: (1)Maximum Low Level Output Voltage: IOL= 8mA; (2)Minimum High Level Input Voltage: Vdd25+0.5 V; (3)Input Current: -1.0 1.0 uA; (4)Tri-State Output Leakage Current: -10 10 uA.
Features
RTL8651C features: (1)100-pin PQFP; (2)PCI local bus single-chip Ethernet controller; (3)Compliant to Ethernet II and IEEE802.3 10Base5, 10Base2, 10BaseT; (4)Supports Full-Duplex Ethernet function to double channel bandwidth.
Diagrams
 |
