Product Summary
The SST39VF020-70-4C-NHE is a 512 Kbit / 1 Mbit / 2 Mbit / 4 Mbit (x8) Multi-Purpose Flash.
Parametrics
SST39VF020-70-4C-NHE absolute maximum ratings: (1)Temperature Under Bias: -55°C to +125°C; (2)Storage Temperature : -65°C to +150°C; (3)D. C. Voltage on Any Pin to Ground Potential : -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V.
Features
SST39VF020-70-4C-NHE features: (1)Organized as 64K x8 / 128K x8 / 256K x8 / 512K x8; (2)Single Voltage Read and Write Operations; (3)Superior Reliability; (4)Low Power Consumption; (5)Sector-Erase Capability.

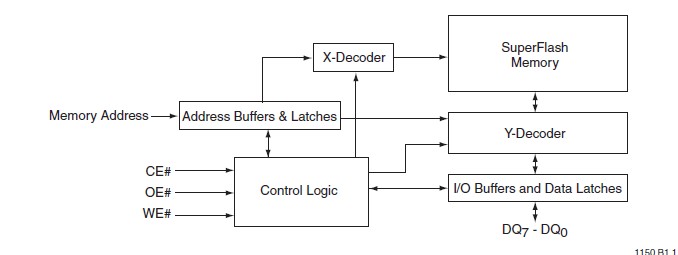

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST39VF020-70-4C-NHE |
Microchip Technology |
Flash 256K X 8 70ns |
Data Sheet |
|
|
||||||||||||
|
SST39VF020-70-4C-NHE-T |
Microchip Technology |
Flash 2.7 to 3.6V 2Mbit Multi-Purpose Flash |
Data Sheet |
|
|
||||||||||||
