Product Summary

The ADS1271IPW is a 24-bit, delta-sigma analog-to-digital converter (ADC)with a data rate up to 105kSPS. It offers a unique combination of excellent DC accuracy and outstanding AC performance.

Parametrics

ADS1271IPW absolute maximum ratings: (1)AVDD to AGND: -0.3 to +6.0 V; (2)DVDD to DGND: -0.3 to +3.6 V; (3)AGND to DGND: -0.3 to +0.3 V; (4)Analog Input to AGND: -0.3 to AVDD + 0.3 V; (5)Digital Input or Output to DGND: -0.3 to DVDD + 0.3 V; (6)Maximum Junction Temperature: +150 °C.

Features

ADS1271IPW features: (1)105kSPS Data Rate; (2)AC Performance:51kHz Bandwidth 109dB SNR (High-Resolution Mode); (3)DC Accuracy: 1.8μV/°C Offset Drift Power-Down Control2ppm/°C Gain Drift; (4)Power-Down Control.

Diagrams

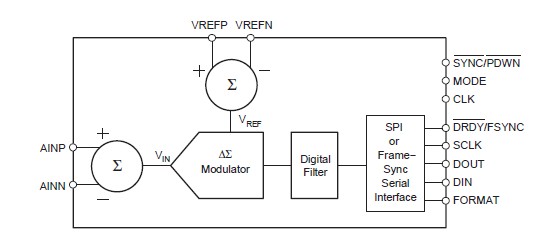

ADS1271IPW block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADS1271IPW
ADS1271IPW
Texas Instruments
ADC (A/D Converters) 24-Bit 105kSPS Ind Delta-Sigma
Data Sheet
0-1: $8.42
1-10: $7.67
10-25: $7.09
25-50: $6.85
ADS1271IPWG4
ADS1271IPWG4
Texas Instruments
ADC (A/D Converters) 24-Bit 105kSPS Ind Delta-Sigma
Data Sheet
0-49: $7.09
49-50: $6.85
50-100: $5.14
100-250: $5.08
ADS1271IPWRG4
ADS1271IPWRG4
Texas Instruments
ADC (A/D Converters) 24-Bit 105kSPS Ind Delta-Sigma
Data Sheet
0-2003: $3.98
2003-2500: $3.98
ADS1271IPWR
ADS1271IPWR
Texas Instruments
ADC (A/D Converters) 24-Bit 105kSPS Ind Delta-Sigma
Data Sheet
0-2003: $3.98
2003-2500: $3.98
