Product Summary
The FW82443GX is a Transceiver.
Parametrics
FW82443GX absolute maximum ratings: (1)Supply Voltage Range : 3.0 3.6 V; (2)Input Voltage Range: -0.5 VDD + 0.5 V; (3)Output Voltage Range at Any Output: -0.5 VDD + 0.5 V; (4)Operating Free Air Temperature: 0-70 °C; (5)Storage Temperature Range: -65 150 °C.
Features
FW82443GX features: (1)Does not require external filter capacitors for PLL; (2)Does not require a separate 5 V supply for 5 V link ontroller interoperability; (3)Interoperable across 1394 cable with 1394 physical; (4)layers (PHY) using 5 V supplies; (5)Interoperable with 1394 link-layer controllers using 5 V supplies.

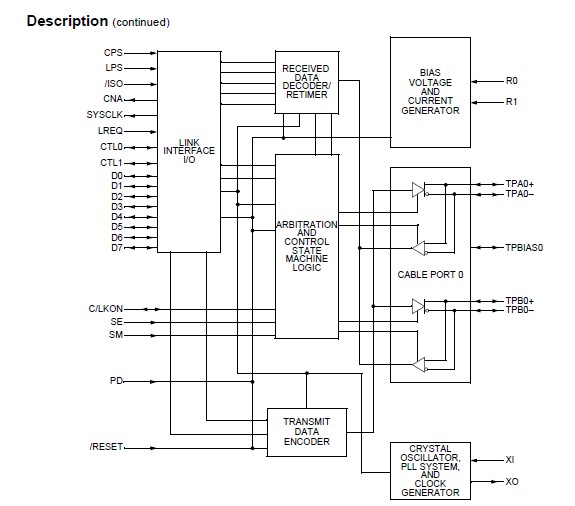

Diagrams
 |
