Product Summary

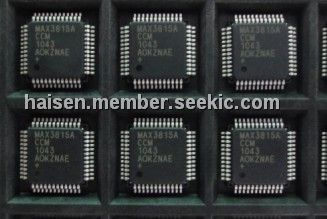

The MAX3815ACCM+ is a TMDS Digital Video Equalizer. The MAX3815ACCM+ cable equalizer automatically provides compensation for DVI; and HDMI; v1.3 cables.
Parametrics
MAX3815ACCM+ absolute maximum ratings: (1)Supply Voltage Range, VCC: -0.5V to +4.0V; (2)Voltage Range at Output CML Pins: -0.5V to +4.0V; (3)Voltage Between Input CML Complementary Pair: ±3.3V.
Features
MAX3815ACCM+ features: (1)Guaranteed Performance to 2.25Gbps (HDMI 1.3); (2)Extends 2.25Gbps TMDS Interface Length; (3)Extends 1.65Gbps TMDS Interface Length; (4)Fully Automatic Equalization, No System ControlRequired.

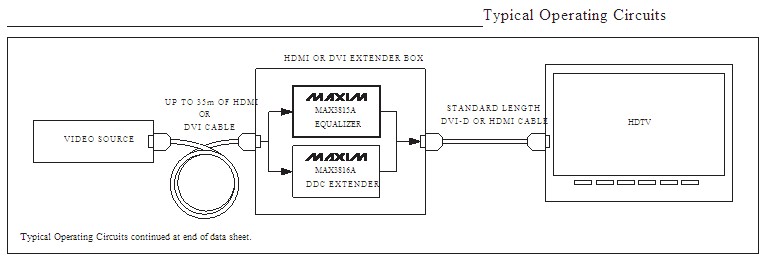

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3815ACCM+ |
Maxim Integrated Products |
Equalizers TMDS Digi Video EQ for HDMI/DVI Cables |
Data Sheet |
|
|
||||||||||
|
MAX3815ACCM+T |
Maxim Integrated Products |
Equalizers TMDS Digi Video EQ for HDMI/DVI Cables |
Data Sheet |
|
|
||||||||||
