LM2596SX-3.3

150 kHz, 3A, Step-Down Voltage Regulator, TO263-5

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.19~1.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.19~1.25

PartNumber:: LM2596SX-3.3

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jasmine's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-25

From Other Seller

Part Number:LM2596SX-3.3
US $1.19 - 1.25
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

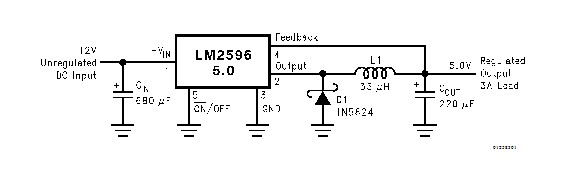

Product Summary

The LM2596SX-3.3 is a Voltage Regulator that provides all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. The LM2596SX-3.3 is available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version. The LM2596SX-3.3 operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 5-lead TO-220 package with several different lead bend options, and a 5-lead TO-263 surface mount package. The applications of the LM2596SX-3.3 are Simple high-efficiency step-down (buck) regulator, On-card switching regulators, Positive to negative converter.

Parametrics

LM2596SX-3.3 absolute maximum ratings: (1)Maximum Supply Voltage:45V; (2)ON /OFF Pin Input Voltage:-0.3 ≤ V ≤ +25V; (3)Feedback Pin Voltage:-0.3 ≤ V ≤+25V; (4)Output Voltage to Ground(Steady State):-1V; (5)Power Dissipation:Internally limited; (6)Storage Temperature Range:-65℃ to +150℃; (7)ESD Susceptibility: Human Body Model:2 kV; (8)Lead Temperature: Vapor Phase (60 sec.):+215℃, Infrared (10 sec.):+245℃; (9)Maximum Junction Temperature:+150℃.

Features

LM2596SX-3.3 features: (1)3.3V, 5V, 12V, and adjustable output versions; (2)Adjustable version output voltage range, 1.2V to 37V, ±4% max over line and load conditions; (3)Available in TO-220 and TO-263 packages; (4)Guaranteed 3A output load current; (5)Input voltage range up to 40V; (6)Requires only 4 external components; (7)Excellent line and load regulation specifications; (8)150 kHz fixed frequency internal oscillator; (9)TTL shutdown capability; (10)Low power standby mode, IQ typically 80 μA; (11)High efficiency; (12)Uses readily available standard inductors; (13)Thermal shutdown and current limit protection.
