Product Summary

The MB15E03SLPFV1 is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1.2 GHz prescaler. The 1.2 GHz prescaler has a dual modulus division ratio of 64/65 or 128/129 enabling pulse swallowing operation. The supply voltage range is between 2.4 V and 3.6 V. The MB15E03SLPFV1 uses the latest BiCMOS process, as a result, the supply current is typically 2.0 mA at 2.7 V. A refined charge pump supplies a well balanced output currents of 1.5 mA or 6 mA.

Parametrics

MB15E03SLPFV1 absolute maximum ratings: (1)Power supply voltage, VCC: -0.5 to 4.0 V; VP: VCC to 6.0 V; (2)Input voltage VI: -0.5 to VCC +0.5 V; (3)Output voltage, VO: GND to VCC V; VO: GND to VP V; (4)Storage temperature, Tstg: -55 to +125℃.

Features

MB15E03SLPFV1 features: (1)High frequency operation: 1.2 GHz max; (2)Low power supply voltage: VCC = 2.4 V to 3.6 V; (3)Ultra Low power supply current: ICC = 2.0 mA typ. (VCC = Vp = 2.7 V, Ta = +25℃, in locking state); ICC = 2.5 mA typ. (VCC = Vp = 3 V, Ta = +25℃, in locking state); (4)Direct power saving function: Power supply current in power saving mode; Typ. 0.1 mA (VCC = Vp = 3 V, Ta = +25℃), Max. 10 mA (VCC = Vp = 3 V); (5)Dual modulus prescaler: 64/65 or 128/129; (6)Serial input 14-bit programmable reference divider: R = 3 to 16,383.

Diagrams

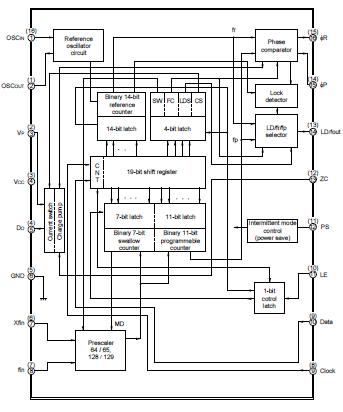

MB15E03SLPFV1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MB15E03SLPFV1-G-BND-6E1
MB15E03SLPFV1-G-BND-6E1

IC SYNTHESIZER PLL 1.2GHZ 16SSOP
Data Sheet
0-1: $1.30
1-10: $1.18
10-50: $1.05
50-100: $0.95
100-250: $0.84
250-500: $0.74
500-1000: $0.61
1000-2500: $0.57
2500-5000: $0.55

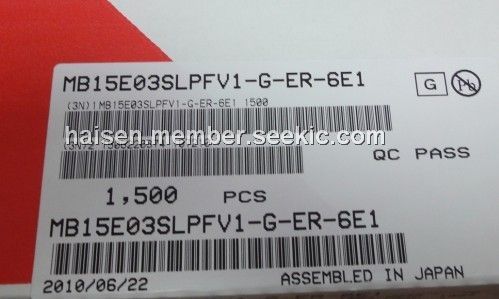

MB15E03SLPFV1-G-ER-6E1
MB15E03SLPFV1-G-ER-6E1

IC SYNTHESIZER PLL 1.2GHZ 16SSOP
Data Sheet
0-1: $1.28
1-10: $1.16
10-50: $1.04
50-100: $0.93
100-250: $0.83
250-500: $0.72
