Product Summary
The 74AHCT1G02GW is a high-speed Si-gate CMOS device. The 74AHCT1G02GW provides the 2-input NOR function.
Parametrics
74AHCT1G02GW absolute maximum ratings: (1)supply voltage: 5.5 V; (2)input voltage: 5.5 V; (3)operating ambient temperature: +25 to +125 °C; (4)input rise and fall times: 5 ±0.5 V.
Features
74AHCT1G02GW features: (1)Low power dissipation; (2)Balanced propagation delays; (3)Very small 5-pin package; (4)Output capability: standard; (5)Specified from -40 to +125 °C.

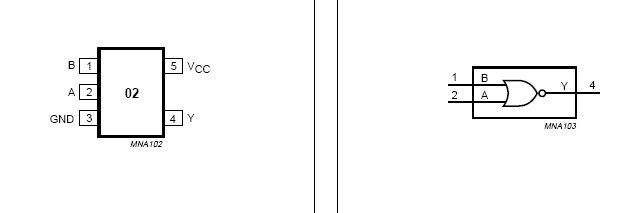

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74AHCT1G02GW,125 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT NOR |
Data Sheet |
|
|
||||||||||||
 |
74AHCT1G02GW,165 |
|
IC 2-IN NOR GATE SC88A-5 |
Data Sheet |
Negotiable |
|
||||||||||||
