Product Summary

The AP3406AMM-ADJTRG1 is a 150khz 3A buck dc-dc converter. Application areas of the AP3406AMM-ADJTRG1 include LCD Monitor and LCD TV, On-Card DC-DC Converter.

Parametrics

AP3406AMM-ADJTRG1 absolute maximum ratings: (1)Input Voltage: 40 V; (2)Feedback Pin Voltage: 40 V; (3)Operating Junction Temperature: 150°C; (4)Lead Temperatur (Soldering, 10sec): 260°C.

Features

AP3406AMM-ADJTRG1 features: (1)3.3V, 5V, 12V Fixed (±4% Tolerance) and Adjustable(±3% Tolerance) Output Versions; (2)Guaranteed 3A Output Load Current; (3)150kHz Fixed Frequency Internal Oscillator; (4)Input Voltage Range up to 32V; (5)Requires only 4 external components; (6)High Efficiency up to 90%; (7)Excellent Line and Load Regulation; (8)TTL Shutdown Capability; (9)Low Power Standby Mode, IQ Typically 80μA.

Diagrams

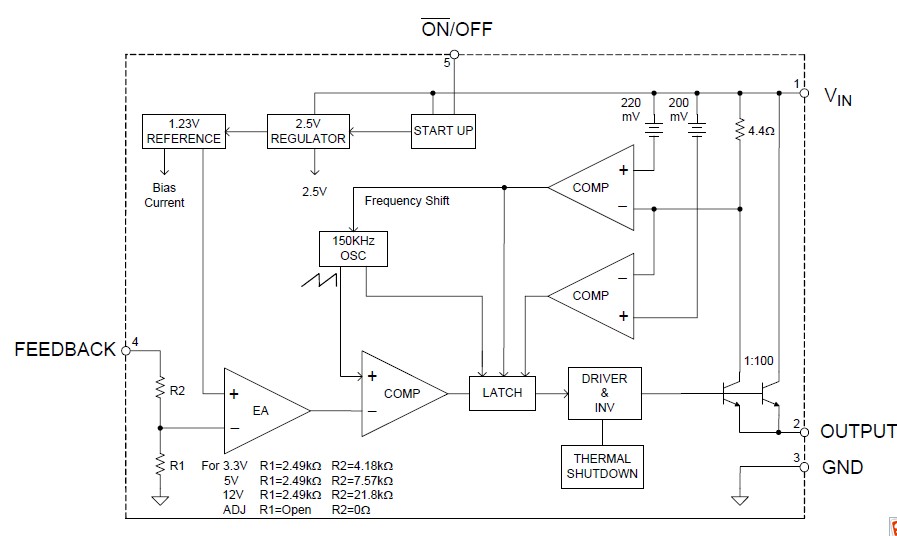

AP3406AMM-ADJTRG1 block diagram
