Product Summary

The CS5464-ISZ is an integrated power measurement device which combines three analog-to-digital converters, power calculation engine, energy-to-frequency converter, and a serial interface on a single chip. The CS5464-ISZ is designed to accurately measure instantaneous current and oltage and calculate VRMS, IRMS, instantaneous power, active power, apparent power, and reactive power for high-performance power measurement applications. The CS5464-ISZ is optimized to interface to shunt resistors or current transformers for current measurement, and to resistive dividers or potential transformers for voltage measurement.

Parametrics


CS5464-ISZ absolute maximum ratings: (1) DC Power Supplies VD+: -0.3 to +6.0V, VA+: -0.3 to +6.0V; (2) DC Power Supplies IIN: ±10mA; (3) Output Current, Any Pin Except VREFOUT IOUT: 100mA; (4) Power Dissipation PD: 500mW; (5) Analog Input Voltage VINA: -0.3 to (VA+) +0.3V; (6) Digital Input Voltage VIND: -0.3 to (VA+) +0.3V; (7) Ambient Operating Temperature TA: -40 to 85°C; (8) Storage Temperature: -65 to 150°C.

Features

CS5464-ISZ features: (1) Energy Data Linearity: ±0.1% of Reading over 1000:1 Dynamic Range; (2) Meets Accuracy Spec for IEC, ANSI, & JIS; (3) Low Power Consumption; (4) Tamper Detection in 2-Wire Distribution Systems; (5) GND-referenced Signals with Single Supply; (6) On-chip 2.5V Reference (25 ppm/°C typ) ; (7) Power Supply Monitor; (8) Simple Three-wire Digital Serial Interface.

Diagrams

CS5464-ISZ Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

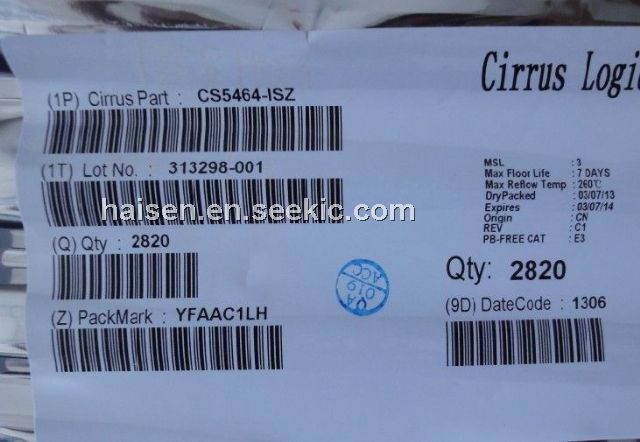

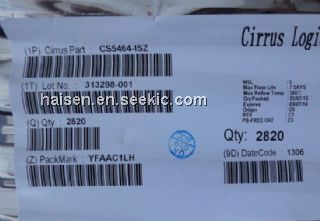

CS5464-ISZ
CS5464-ISZ
Cirrus Logic
Other Power Management 3-Ch Single Phase Power/Energy IC
Data Sheet
0-1: $1.36
1-25: $1.28
25-50: $1.27
50-100: $1.23
CS5464-ISZR
CS5464-ISZR
Cirrus Logic
Other Power Management IC 3-Ch Single Phase PWR/Energy
Data Sheet
0-775: $1.23
775-1000: $1.23
