Product Summary

The LM2904M is a Dual Operational Amplifier. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

Parametrics

LM2904M absolute maximum ratings: (1)Supply Voltage: ±13 or 26 V; (2)Differential Input Voltage: 26 V; (3)Input Voltage: -0.3 to +26 V.

Features

LM2904M features: (1)Internally Frequency Compensated for Unity Gain; (2)Large DC Voltage Gain: 100dB; (3)Input Common Mode Voltage Range Includes Ground; (4)Large Output Voltage Swing: 0V DC to Vcc -1.5V DC; (5)Power Drain Suitable for Battery Operation.

Diagrams

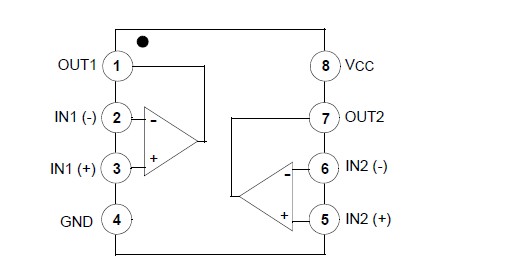

LM2904M block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM2904M
LM2904M
Fairchild Semiconductor
Operational Amplifiers - Op Amps Dual Operational Amp
Data Sheet
0-1: $0.18
1-25: $0.15
25-100: $0.13
100-250: $0.11
LM2904M/NOPB
LM2904M/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP
Data Sheet
0-1: $0.50
1-25: $0.38
25-100: $0.33
100-250: $0.29
LM2904M_Q
LM2904M_Q
Fairchild Semiconductor
Operational Amplifiers - Op Amps Dual Operational Amp
Data Sheet
Negotiable
LM2904MX
LM2904MX
Fairchild Semiconductor
Operational Amplifiers - Op Amps SOP-8 Dual Op Amp
Data Sheet
0-1: $0.26
1-25: $0.21
25-100: $0.14
100-250: $0.12
LM2904MX/NOPB
LM2904MX/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP
Data Sheet
0-1: $0.55
1-25: $0.44
25-100: $0.38
100-250: $0.34
